Li-ion Battery Charger Module

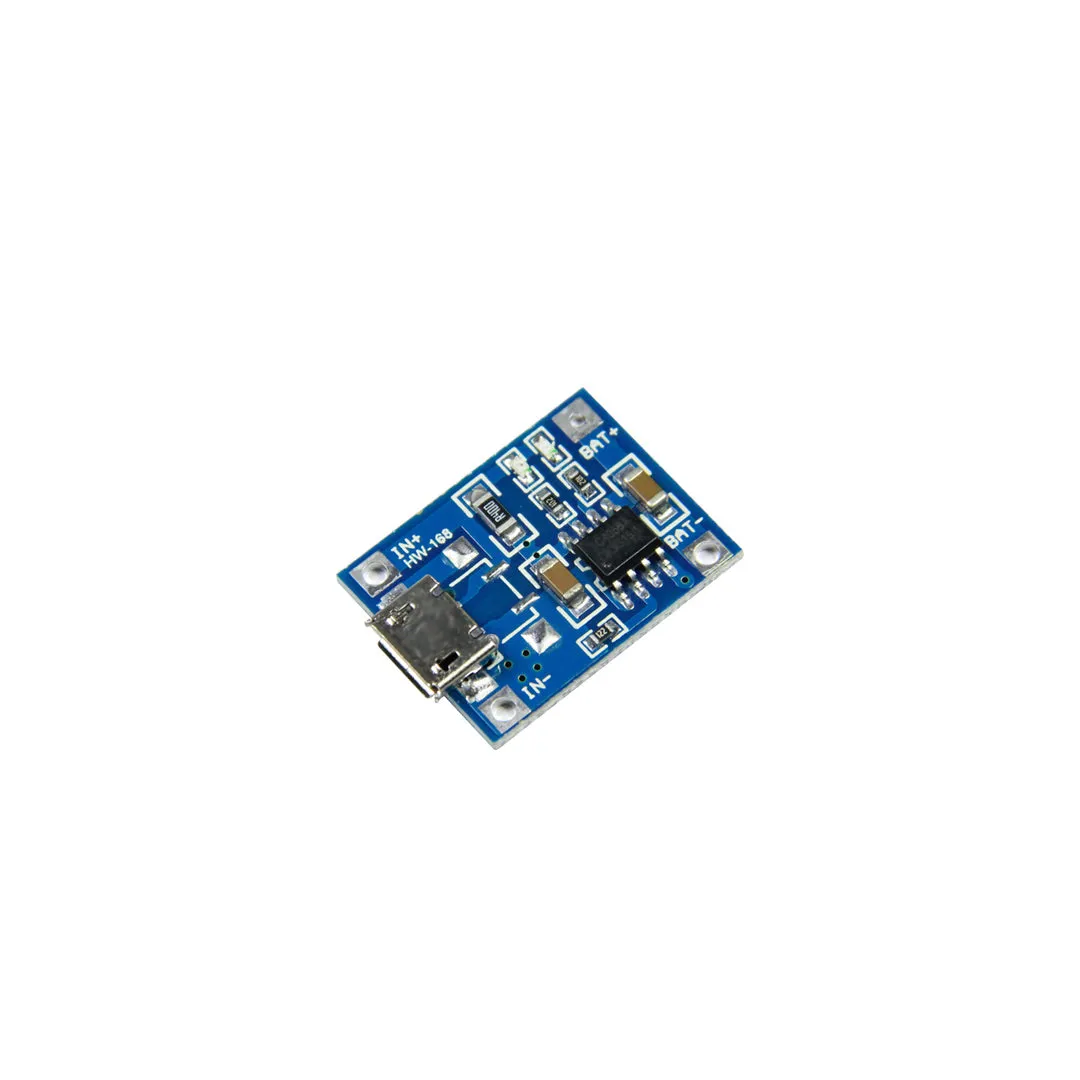

Name: TP 4056 Li ion Battery Charger Module With Out Protection
SKU: 348259

The TP4056 is a complete constant-current/constant-voltage linear charger for single-cell lithium-ion batteries. Its SOP package and low external component count make the TP4056 ideally suited for portable applications. Furthermore, the TP4056 can work within a USB and wall adapters. No blocking diode is required due to the internal PMOSFET architecture and has prevented to negative Charge Current Circuit. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The TP4056 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached. TP4056 Other features include a current monitor, under voltage lockout, automatic recharge, and two status pins to indicate charge termination and the presence of an input voltage

You can use the 18650 single cell to connect the battery to the board. After the use you can store the battery in the battery.

FEATURES:

Programmable Charge Current Up to 1000mA
No MOSFET, Sense Resistor, or Blocking Diode Required ·No MOSFET, Sense Resistor, or Blocking Diode Required ·No MOSFET, Sense Resistor, or Blocking Diode Required ·No MOSFET, Sense Resistor, or Blocking Diode Required
Complete Linear Charger in SOP-8 Package for Single Cell Lithium-Ion Batteries
Constant-Current/Constant-Voltage
Charges Single Cell Li-Ion Batteries Directly from USB Port
Preset 4.2V Charge Voltage with 1.5% Accuracy
Automatic Recharge
Two Charge Status Output Pins
C/10 Charge Termination
2.9V Trickle Charge Threshold (TP4056)
Soft-Start Limits Inrush Current
Available Radiator in 8-Lead SOP Package, the Radiator needs to connect GND or impending
